ASUS · MODEL REFERENCE

PRIME X570-P

The right downloads. A clearer view of your board.

AM4AMD X570DDR4

What do you need?

DriversChoose your operating system and device. BIOS & firmwareRead version notes and the update procedure. CPU supportCheck your processor and required BIOS. ManualsOpen the manufacturer documentation.

All downloads open on ASUS’s website. Select the matching category if the site opens its default tab. MoboDocs does not host installers or BIOS files.

Match the complete model name and PCB revision before downloading. DDR4/DDR5, Wi-Fi, MAX and II variants can use different files.

A closer look at the board

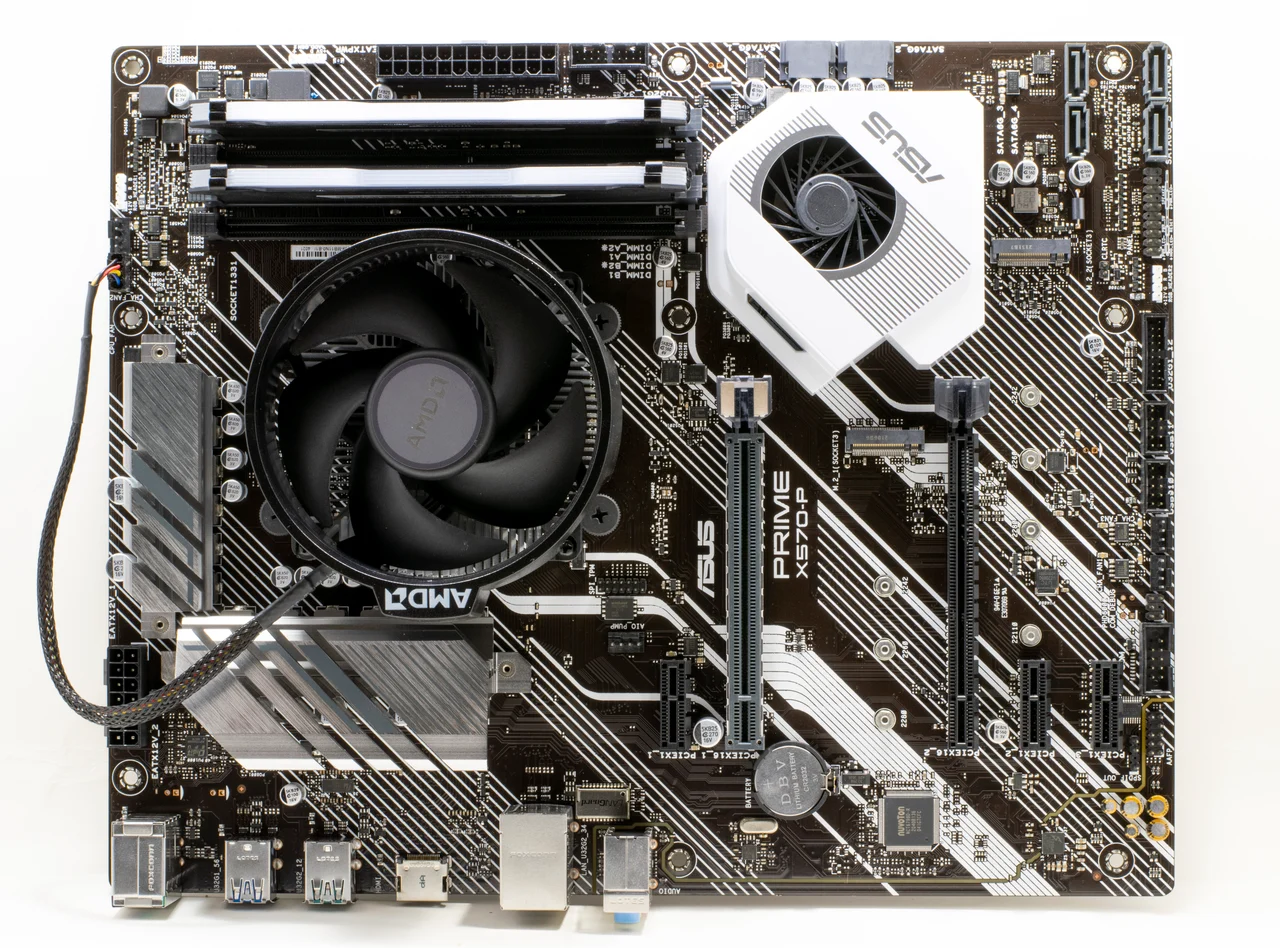

ASUS PRIME X570-P with an installed AMD cooler; rear I/O is at the bottom.
Photo: Oligopolism · Original · CC0 1.0. Resized and converted to WebP. Fitted components shown in the photograph are not included with a bare motherboard.

Specifications & model notes

Form factor
ATX
Memory slots
4
M.2 storage slots
2
SATA ports
6

Physical connector counts do not guarantee simultaneous use. Check processor and lane-sharing limits in the specification.

Both M.2 sockets accept PCIe or SATA drives. M2_1 link generation depends on the processor; M2_2 is connected through X570. The product photograph shows a fitted CPU cooler, which is not part of the bare motherboard.

Original documentation

Manufacturer support & documentationChoose the matching manual, revision and language.
Open source ↗
Specifications & compatibilityCheck CPU support, memory and expansion limits.
View details ↗
Official product photosView the manufacturer’s gallery and compare the exact model.
View product ↗
